Solar Cells Testers

Photo Emission Tech can provide a turn-key integrated Solar Simulator and I-V Measurement System for cell testing. The advantage of a cell tester is that all that needs to be done to test a cell is to load the cell, make electrical probes contact and press “Measure” icon on the I-V Measurement System software. The software will automatically open the Solar Simulator shutter, perform the test and close the shutter after the test is complete.

Any of the Solar Simulator models listed herein can be integrated with any of the I-V Measurement Systems. We can also provide custom cell platen, usually at no extra charge.

Solar Cell Tester Model CT300
Solar Cell Tester Model CT300

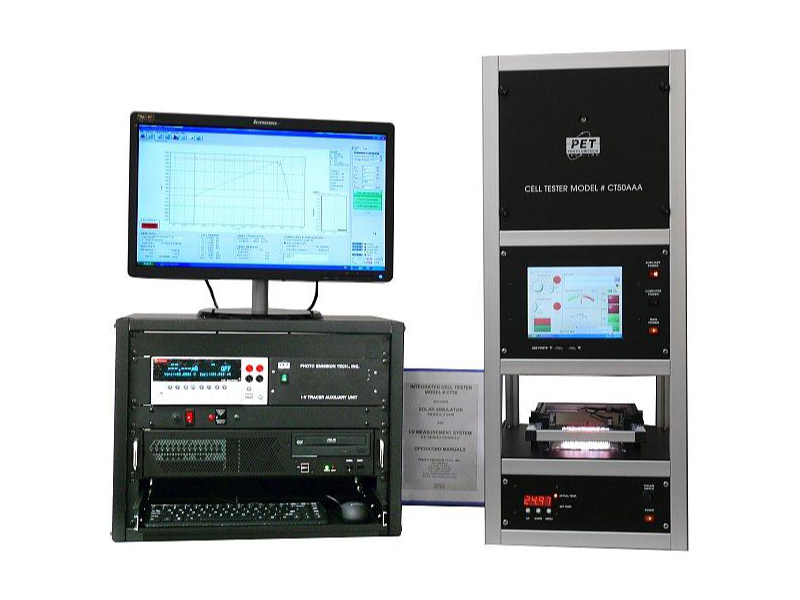

Solar Cell Tester Model CT-150
Turn-Key Solar Cell Testing Station Model CT-150 which includes Model SS150AAA, a class A Solar Simulator, with Illumination area of 150mmX150 and Air Mass Filter of AM1.5 Global; plus, Model CC-5, a five (5) Amps capability I-V Measurement system. More details...

Continue to the Solar Cells Testers section

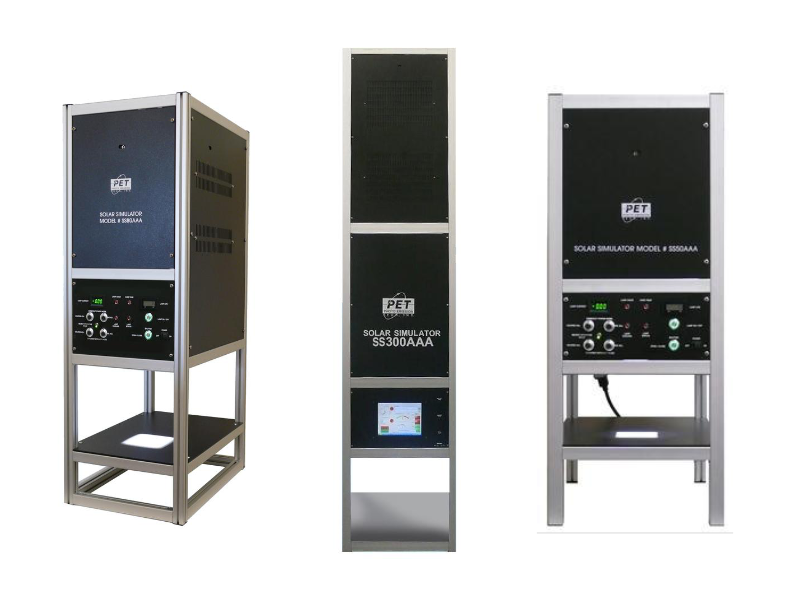

Solar Simulation Systems

also known as: Sun Simulator, Simulator Solar, Solar Equipment, Full Spectrum Solution

Photo Emission Tech., Inc. designs, manufacures and markets various illumination areas and wattages of class A Solar Simulators also known as sun simulators that meets ASTM E927 (Japanese Standard JIS C8912 and European Standard IEC 60904-9). The six (6) models of solar simulators marketed by PET provide illumination areas of from 50mmx50mm through 300mmx300mm.

These solar simulator products simulate natural sun light in a variety of conditions, such as those in space or at sea level by providing the user the full spectrum light. PET’s solar simulators are covered by two years factory warranty. There are two versions of each model available. One version has a Micro-Processor based controller which allows the user to digitally control the entire operations of the solar simulator through a controller. The other version of each model has an Electro-Mechanical Control panel.

These solar simulators can be used for checking light-sensitive devices such as solar (photovoltaic) cell performance. These solar simulators can also be used to test and classify solar cells prior to assembly into solar panels. The other applications of these solar simulators are photochemistry for testing exposure to sun light, photobiology research of animals, plants, cells studies, material degradation research, semiconductor testing, phototoxicity studies, and sun light exposure testing and of color fastness and material stability for textile, plastics and paints.

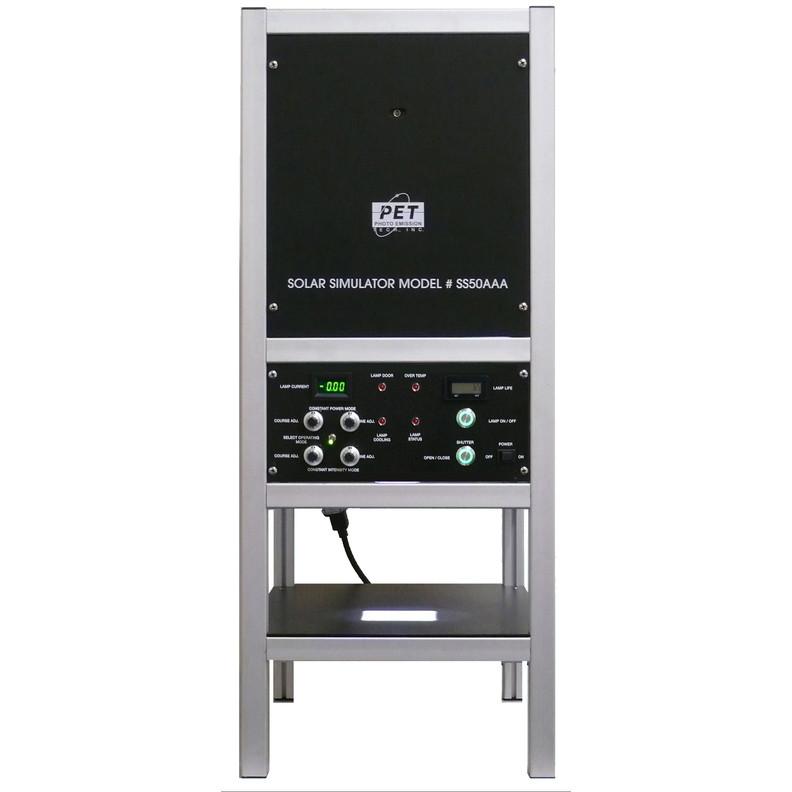

Solar Simulator Model SS50AAA

Solar Simulator Model SS50AAA, a class A Solar Simulator, with illumination area of 50mmX50mm, and Air Mass Filter of AM1.5 Global.

Photo Emission Tech., Inc. (PET) manufactures state-of-the-art Solar Simulators and related products

Solar Simulators (Steady State for Cell Testing)

  1. Illumination area from 50mm x 50mm to 400mm x 400mm.
  2. Meets Class A requirements of ASTM E927, JIS C 8912-1989 and IEC 904 standards.
  3. Closest spectral match to the solar spectra.
  4. AM1.5G, AM1G and AM0 filters available.
  5. Built-in light feedback and control system.
  6. Microprocessor based (allows remote trouble shooting via internet connection) or Electro-Mechanical control for Solar Simulators.
  7. All six (6) various PET’s class AAA Solar Simulators offer external X-Y-Z axis feature, whereas the user can adjust the lamp while it is ON for optimum light intensity and uniformity. Since the focal point of lamp shifts as the lamp ages, by periodically adjusting the lamp, the uniformity can be maintained.
  8. All PET’s six (6) various Solar Simulator models are vertical (straight) system, unlike Folded systems offered by other manufacturers that use two reflective mirrors, which causes a loss of 10% to 20% light intensity, PET’s Solar Simulators save energy in the long run.
  9. All models of Solar Simulators and Cell Tester have small footprint.
  10. A two (2) warranty of all parts and lobar for all Solar Simulator and Cell Tester products.

Continue to the Solar Simulators section



Low Concentration Photo-Voltaic (LCPV) & High Concentration Photo-Voltaic (HCPV) Cell Testing

Testing of LCPV Cells require Solar Simulators that have intensity concentration of 2-10 suns (2,000-10,000 w/m² or 200-1,000 mw/m²). Testing of HCPV Cells require Solar Simulators that have intensity concentration of ≥200 suns (≥200,000 w/m² or ≥20,000 mw/m²). These Solar Simulators deploy concentrating optics consisting of Fresnel lenses that concentrate Solar Simulator output to intensities that match the LCPV or HCPV Cell testing requirements. These LCPV or HCPV Solar Simulators are very useful for applications such as concentrated PV cell testing, accelerated photo-degradation studies and materials testing.



Continue to the Low Concentration Photo-Voltaic (LCPV) & High Concentration Photo-Voltaic (HCPV) Cell Testing section



I-V Measurement Systems

also known as: I-V Curve Data Acquisition Systems

PET also manufactures and markets various models of quality I-V measurement systems to be used in conjunction with its models of solar simulator for measuring the electrical characteristics of solar cells or other semiconductor devices. PET’s I-V Measurement Systems for Cell Testing are capable to test up to 400mm X 400mm area, with optional temperature control, 5° C to 75° C standard range, and an optional extended range -35° C to 120° C, and sorting. Custom fixtures are also available with Uniformity measurement fixture and software, and temporal stability measurement and software.

These Solar Cells I-V Measurement testers are very high quality products, easy to use, and are reasonably priced. PET’s technical staff gladly would provide information to assist the customer to meet its need of I-V Measurement needs.

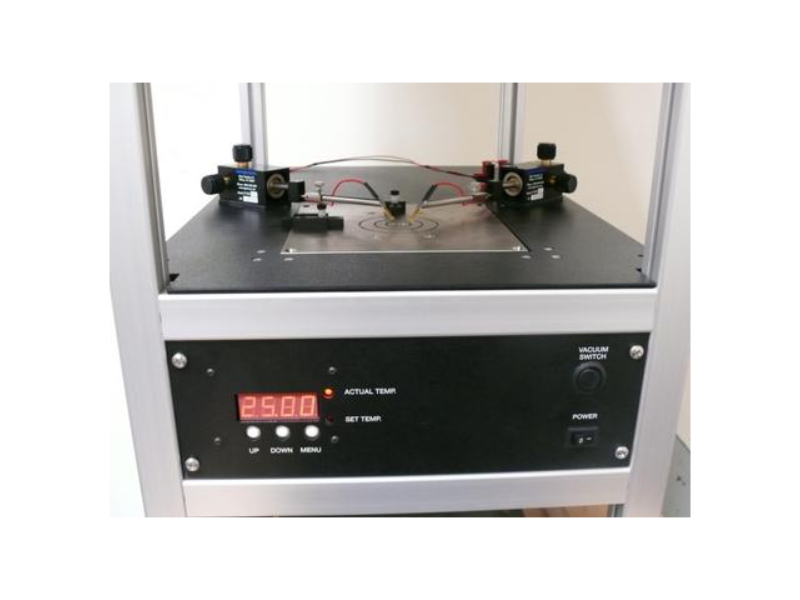

I-V Measurement System

The Solar Cell I-V Measurement System characterizes the current-voltage (I-V) characteristics of photovoltaic devices with currents from 3.0 Amps, 5.0 Amps, 15 Amps and 20 Amps, calculates the solar cell parameters, generates printable test reports and saves test data.

I-V Measurement Systems for Cell Testing

  1. Test cells up to 400mm x 400mm
  2. Optional temperature control, 5° C to 75° C standard range and an optional extended range -35° C to 120° C
  3. Gold plated Contact Probes
  4. Chuck designed per customer’s specifications, all initial modifications are at no extra charge
  5. Multiple current and voltage contacts for top of the cell for large area cells
  6. Micro-Manipulators for small area cells
  7. Stops for Cell Locating
  8. Flexible contacting provision
  9. All PET’s five (5) various Solar Cell tester models offer seven (7) extra software features high-lighted by yellow color on their detailed technical specifications
  10. Custom fixtures also available

Continue to the I-V Measurement Systems section

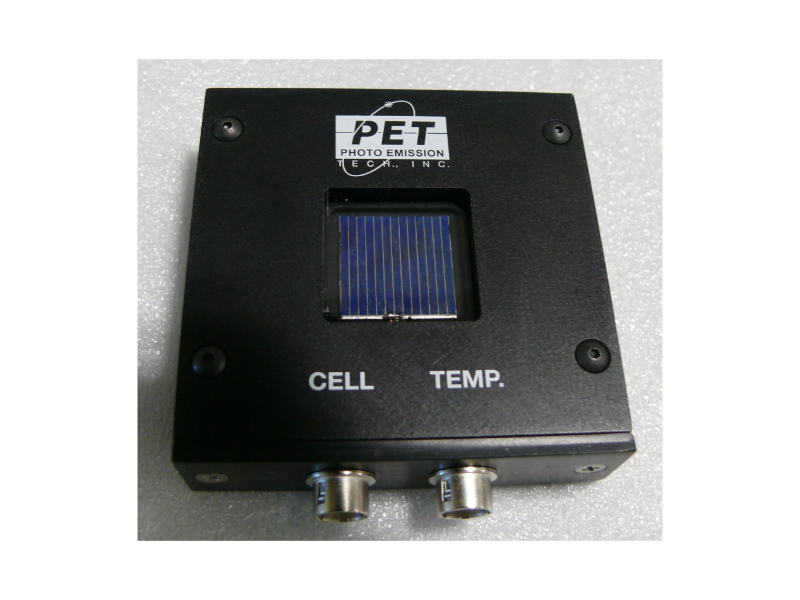

Reference Cells

Reference cells are most commonly used for measuring and setting the intensity of solar simulators for one sun (or other user desired) intensity condition. They can also be used (with supporting equipment) to measure the temporal stability and/or non-uniformity of the light beam of solar simulator.


Reference Cell Model # 60623
Reference Cell Model # 60623

Continue to the Reference Cells section



Surface Quality Monitors

PET also manufactures and markets non-destructive, non-contact surface contamination and thin film detection models and automated systems (Surface Quality Monitoring System) capable of detecting thin layer contamination, thin films and coating down to the Angstrom level. These systems represent a major breakthrough by providing, for the first time, a quantitative measure of surface cleanliness. As surface cleanliness verification instruments, in a part cleaning environment, these products are capable of validating the cleaning quality of all the part cleaning equipment available in the market.

Any of SQM model series is capable of verifying metal contamination; monitoring absence/presence of organic and/or inorganic on virtually on surfaces of all metals. They are, price/performance, the most sufficient product available for testing surface of metals for surface cleanliness. These systems operate in an ambient environment, require no sample preparation or deposit of any agents on the surface. In any parts cleaning environment where the quality and efficiency of part cleaning equipment for removal of surface contamination is highly desired, these systems provide a scientific solution by quantitatively measuring the surface cleanliness. The SQM series has the sensitivity and operational simplicity required to provide fast and cost effective surface evaluation for all metals.

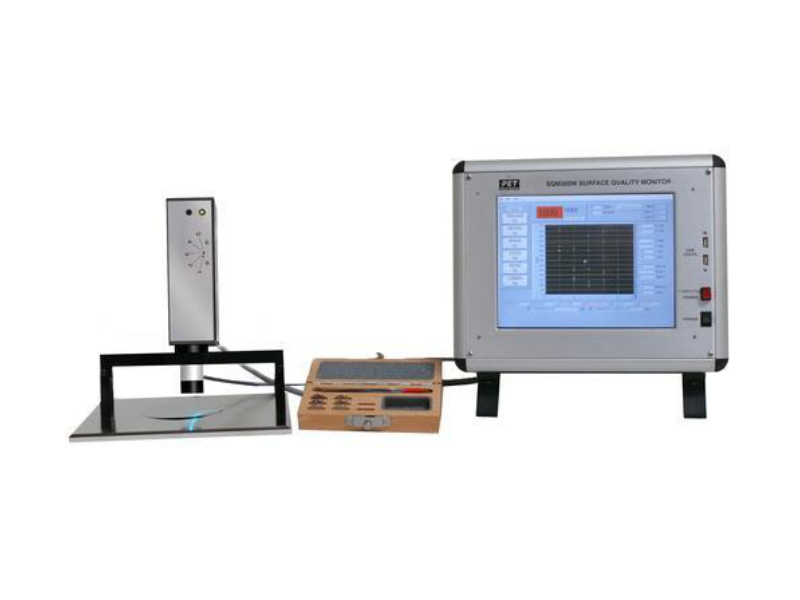

SQM-500 Surface Quality Monitor System

The SQM-500 Surface Quality Monitor System is an integrated TURN-KEY Scanning, Data Acquisition, and 3-D Color Graphics System for scanning flat surfaces.

Continue to the Surface Quality Monitors section



Spectral Response System

PVE300 is a monolithic, turnkey solution for photovoltaic device research in industry and academia, permitting the quick and accurate characterization of photovoltaic devices and materials.


PVE300 Spectral Response System
PVE300 Spectral Response System


Spectral Response System

  1. All PVE300 system components and all accessories are 100% designed and manufactured by Bentham. All individual units and sub-assemblies originate from Bentham i.e. no third party (OEM) items are included in the system.
  2. Software has the most comprehensive features as compared to competitors’ software.
  3. Extensive software package is fully compatible with entire Bentham product range ensuring retrospective and long term future compatibility with all Bentham products.
  4. Software is suitable for use with any Bentham spectrophotometer or spectro-radiometer system configured for use over wavelength range 180nm to 50µm. Software is also compatible with Stanford Research Systems DSP lock-in systems.
  5. System is supplied with full 3 year warranty as standard.
  6. System can be upgraded to incorporate double mono-chromator as required for highest accuracy measurements as specified for reference solar devices (in accordance with IEC 60904-4).
  7. Bespoke sample chuck optimised for customer’s specific contact requirements (e.g. superstrate devices).
  8. Products have proven > 25 year manufacturing pedigree in solar PV research applications.

Continue to the Spectral Response System section



Spectro Radiometers

The ISR300, an Integrated Spectro-radiometer is composed of a single TMc300 monochromator with a two–channels transimpedence amplifiers/ADC. Various models with a range <400nm to more than 21μm are available.


ISR300 Integrated Spectro-Radiometer
ISR300 Integrated Spectro-Radiometer

Continue to the Spectro Radiometers section



We have the expertise to meet your specific needs for Solar Simulators, I-V Measurement Systems, Cell Testers, Surface Quality Monitors and related products.



We strive for best price/performance and service.
