Solar Cell Testers


Solar Cell Tester ModelsSolar Cell Tester Repeatability TestTypical Final Test Report

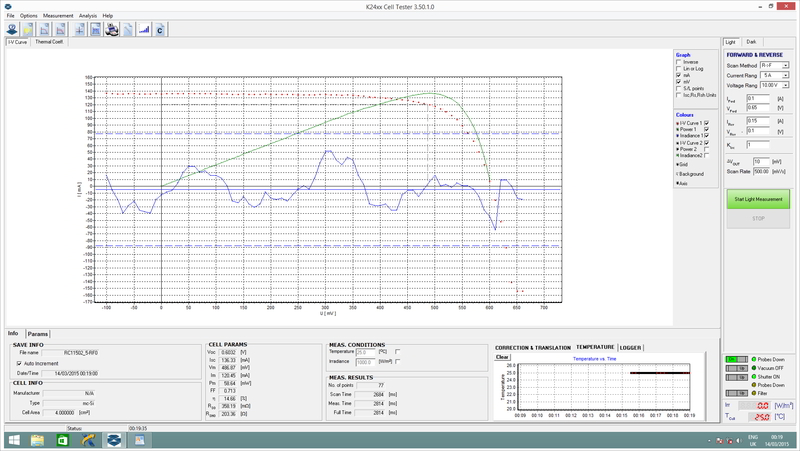

Solar Cell Testers are integrated systems incorporating Solar Simulator and I-V Measurement systems. PET offers Standard and Advance IV Measurement software. PET Cell Testers are capable of measuring a diverse range of solar cell parameters such as Isc,Voc, Imax,Vmax, Pmax, FF, Rsh, Rs and η cell conversion efficiency, complete light and dark I-V curves. All that needs to be done to test a cell is to load the cell, make electrical probes contact and press “Measure” icon on the I-V Measurement System software. The software will automatically open the Solar Simulator shutter, perform the test and close the shutter after the test is complete. The design is modular in nature and can be easily upgraded. Some options can added at a later time.

The CT series Cell Testers include Class AAA Solar Simulators and I-V System manufactured by PET. The system comes with an AM1.5G as a standard. Other AM filters are available. I-V Systems have a current range between 1A to 20A. Some of salient features of the Cell Testers are:

  • Fully integrated and automated systems available.
  • High quality Solar Simulator with computer control.

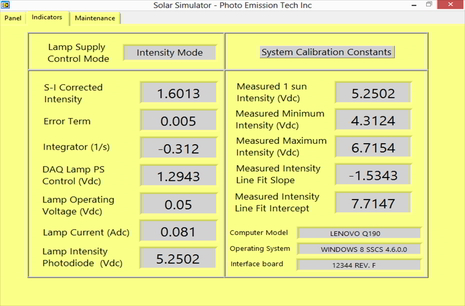

  • Solar Simulator has intensity measurement and feedback control for long term stability.
  • Flexible cell test fixture configurations, including optional cell temperature control (5°C to 60°C ±0.5°C or better).
  • True four-probe cell contacting technique.
  • Temperature controlled chuck with vacuum hold.
  • Multiple cell contacting probes for larger cells.
  • Systems equipped with advance I-V software have:
    • Intensity measurement and temperature measurement with the ability to normalize the data points to Standard Test Conditions (STC) or other user specified conditions.
    • Most powerful and advanced I-V curve software, including powerful curve fitting algorithms, with three (3) different curve fitting models and seventeen (17) different weight function models.
    • Ability to determine Thermal Coefficients of various cell parameters.
    • Virtual cell sorting according to user defined classifications.

Various models of the available Cell Testers are listed here. Customer needs to specify the solar cell size (area of illumination) and the maximum short circuit current (Isc) capability of the solar cell. Any of the Solar Simulator models listed herein can be integrated with any of the listed I-V Measurement systems with Standard IV Measurement software or Advance IV Measurement software. We can also provide custom chucks, usually at no extra charge.




Cell Tester Model CT50AAA
Cell Tester Model CT50AAA



Automated cell contacting
Automated cell contacting



Manual cell contacting
Manual Cell Contacting for Solar Simulators with area of illumination of 150mm x 150mm or larger

Please click on images for a larger view.

SOLAR CELL TESTER MODELS

Solar Cell Tester Model CT30AAA-TP & CT30AAA-EM
Solar Cell Tester System with an illuminated area of 30mm x 30mm integrated with an IV System from 1A to 20A system.

Solar Cell Tester Model CT50AAA-TP & CT50AAA-EM
Solar Cell Tester System with an illuminated area of 50mm x 50mm integrated with an IV System from 1A to 20A system.

Solar Cell Tester Model CT80AAA-TP & CT80AAA-EM
Solar Cell Tester System with an illuminated area of 80mm x 80mm integrated with an IV System from 1A to 20A system.

Solar Cell Tester Model CT100AAA-TP & CT100AAA-EM
Solar Cell Tester System with an illuminated area of 100mm x 100mm integrated with an IV System from 1A to 20A system.

Solar Cell Tester Model CT150AAA-TP & CT150AAA-EM
Solar Cell Tester System with an illuminated area of 150mm x 150mm integrated with an IV System from 1A to 20A system.

Solar Cell Tester Model CT200AAA-TP & CT200AAA-EM
Solar Cell Tester System with an illuminated area of 200mm x 200mm integrated with an IV System from 1A to 20A system.

Solar Cell Tester Model CT300AAA-TP & CT300AAA-EM
Solar Cell Tester System with an illuminated area of 300mm x 300mm integrated with an IV System from 1A to 20A system.

Solar Cell Tester Model CT400AAA-TP & CT400AAA-EM
Solar Cell Tester System with an illuminated area of 400mm x 400mm integrated with an IV System from 1A to 20A system.

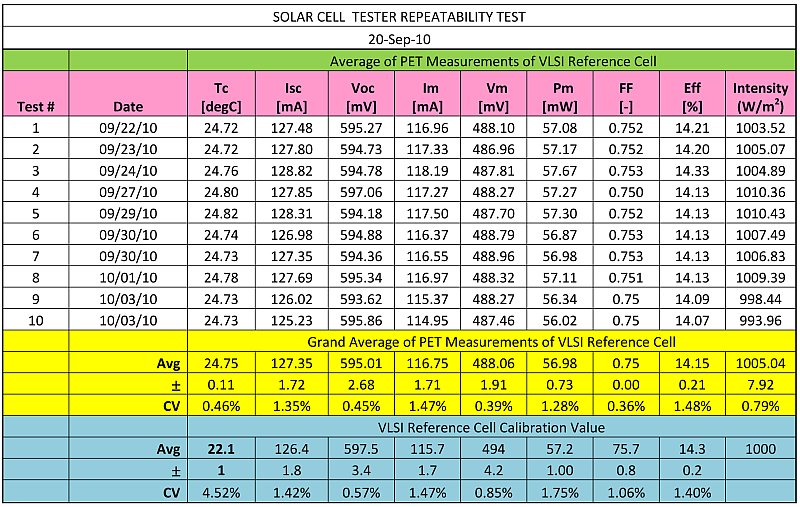

SOLAR CELL TESTER REPEATABILITY TEST


Solar Cell Tester Repeatability Test

CT150AAA Repeatability Test
Please click on image for a larger view.


TYPICAL FINAL TEST REPORT

A report similar to the typical final test report shown below is delivered with each Cell Tester or Solar Simulator to certify that the Cell Tester or the Solar Simulator meets or exceeds all the criteria of the Class AAA requirements of ASTM E927-2010, IEC60904-9 Edition 2.0:2007-10 and JIS C 8912-1998: amendment 1-2005 & Amendment 2-2011AAA system.


Spectral Match = +7.8% to -7.3%
Spectral Match = +7.8% to -7.3%
Better Than Class A Spectral Match Requirements of ASTM E927-2010, IEC60904-9 Edition 2.0 2007-10 and JIS C 8912-1998: amendment 1-2005 & Amendment 2-2011 (≤ 25%)
Please click on image for a larger view.

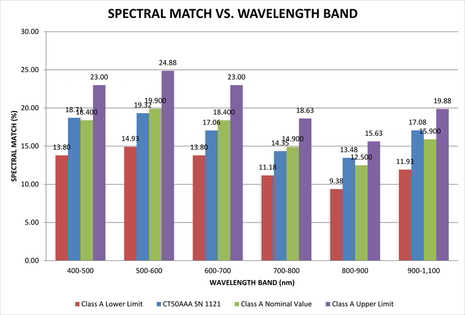

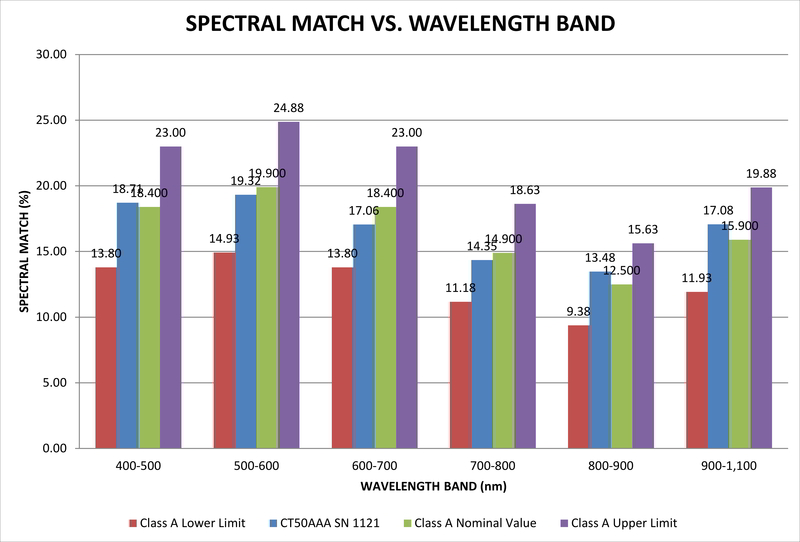

Spectral Match vs Wavelength Band
Spectral Match vs Wavelength Band
Please click on image for a larger view.

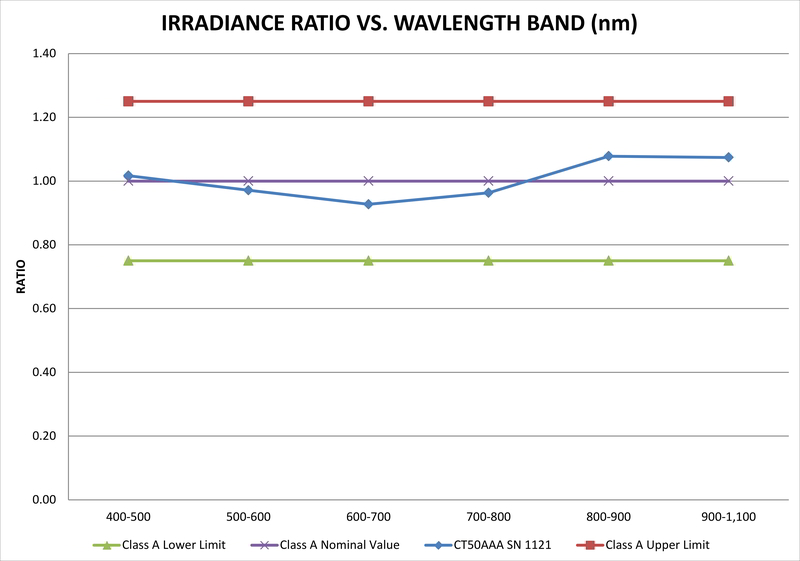

Irradiance Ratio vs Wavelength Band (nm)
Irradiance Ratio vs Wavelength Band (nm)
Please click on image for a larger view.

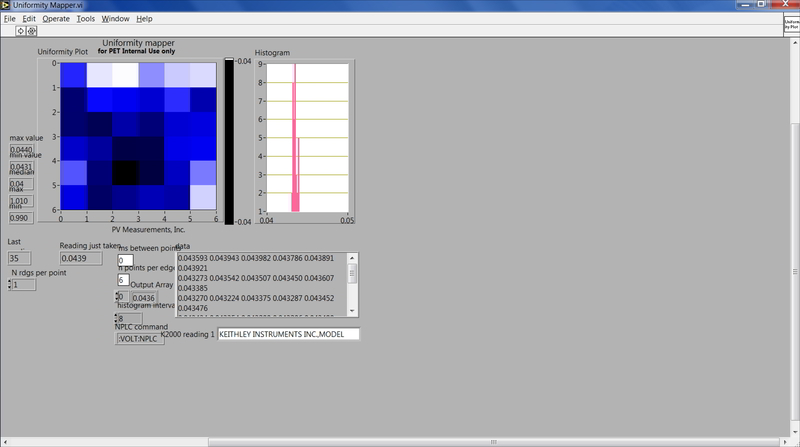

Non-uniformity = 1.03%
Non-uniformity = 1.03%
Much Better Than Class A Non-Uniformity Requirements of ASTM E927-2010, IEC60904-9 Edition 2.0 2007-10 and JIS C 8912-1998: amendment 1-2005 & Amendment 2-2011 (≤ 2%)
Please click on image for a larger view.

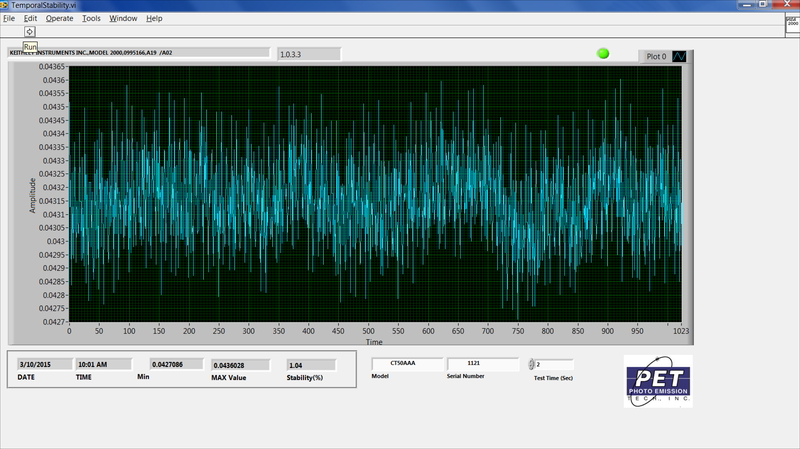

Long Term Instability (LTI) = 1.04%
Long Term Instability (LTI) = 1.04%
Much Better Than Class A Long Term Instability Requirements of ASTM E927-2010, IEC60904-9 Edition 2.0 2007-10 and JIS C 8912-1998: amendment 1-2005 & Amendment 2-2011 (≤ 2%)
Please click on image for a larger view.

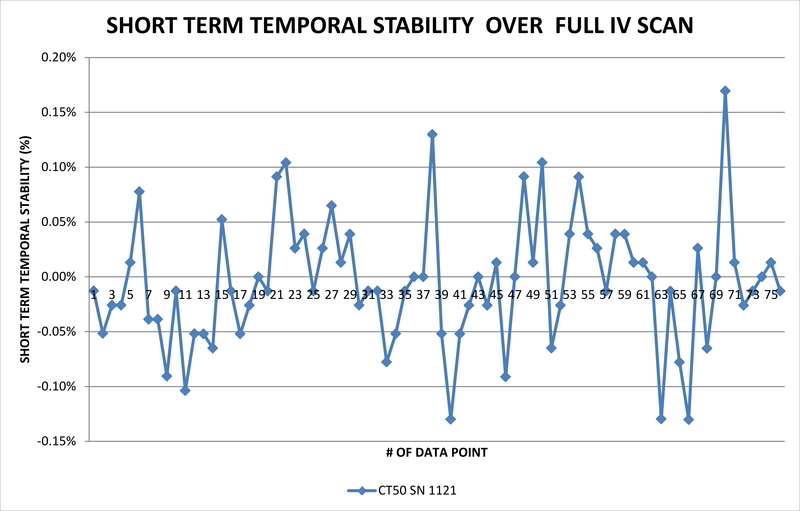

Short Term Instability (STI) = +0.17% - -0.15%
Short Term Instability (STI) = +0.17% - -0.15%
Much Better Than Class A Short Term Instability Requirements of IEC60904-9 Edition 2.0 2007-2010 (≤ 0.50%)
Please click on image for a larger view.




Please click on image for a larger view.




Please click on image for a larger view.
